Description

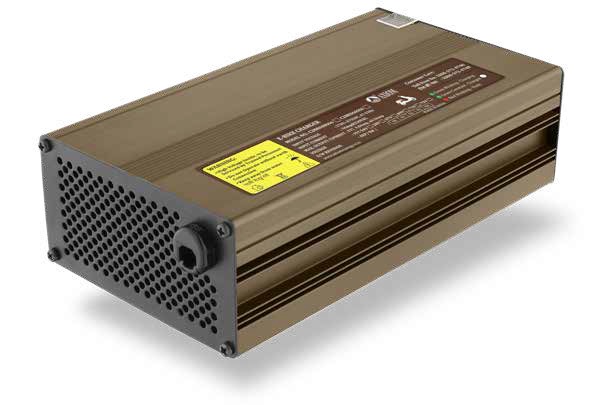

| Hi-eBike Electric Vehicle Charger – Full Technical Specifications | |
|---|---|
| Product Name | Hi-eBike |
| Model No. | C2BK0480006, C2BK060006 |
| Type | Off-board Charger |
| Applications | Electric Two Wheelers |
| AC Input | |
| Voltage Range | 170–275 VAC |
| Nominal Voltage | 230 VAC |
| Frequency | 47–53 Hz |
| DC Output | |
| Maximum Voltage | 54.6V, 58V, 67.2V, 69V, 71.4V, 73V, 87V |
| Nominal Voltage | 48V / 60V / 72V |
| Maximum Current | 6A ± 0.3A |
| Protections | |
|
Output Overload Protection, Output Short Circuit Protection, Output Over Voltage Protection, Over Temperature Protection (Auto Recovery), Output Reverse Polarity Protection |
|
| Test Standards | |
| Surge Capability | As per IEC EN61000-4-5 |
| Die-electric Withstand | 1.5KVac RMS for 60 sec with ITrip of 5mA |
| Vibration Test | As per ISO16750-3 |
| Bump Test | As per IEC 60068-2-29 |
| Environmental | |
| Operating Temperature | 0°C to +50°C |
| Mechanical | |
| Indications & Alarms | Charge Percentage LEDs with buzzer |
| Dimensions (L×W×H) | 194.4 × 105 × 55 mm |
| Weight | 1.5 kg |
